In the intricate architecture of software system design, behavioral modeling plays a pivotal role. Among the various diagrams available in the Unified Modeling Language (UML), the State Machine Diagram stands out as a critical tool for defining the dynamic behavior of complex systems. While many designers focus on the primary flow of states and transitions, a lesser-known yet powerful element often gets overlooked. This element is the History State. Understanding and implementing this concept correctly can drastically improve the robustness and user experience of stateful applications.
📌 Primary Keywords: UML State Diagram, History State, Deep History, Shallow History, State Machine Design, Behavioral Modeling.
📌 Long-Tail Keywords: How to use history states in UML, deep history vs shallow history UML, state machine transition logic, implementing state persistence in design.

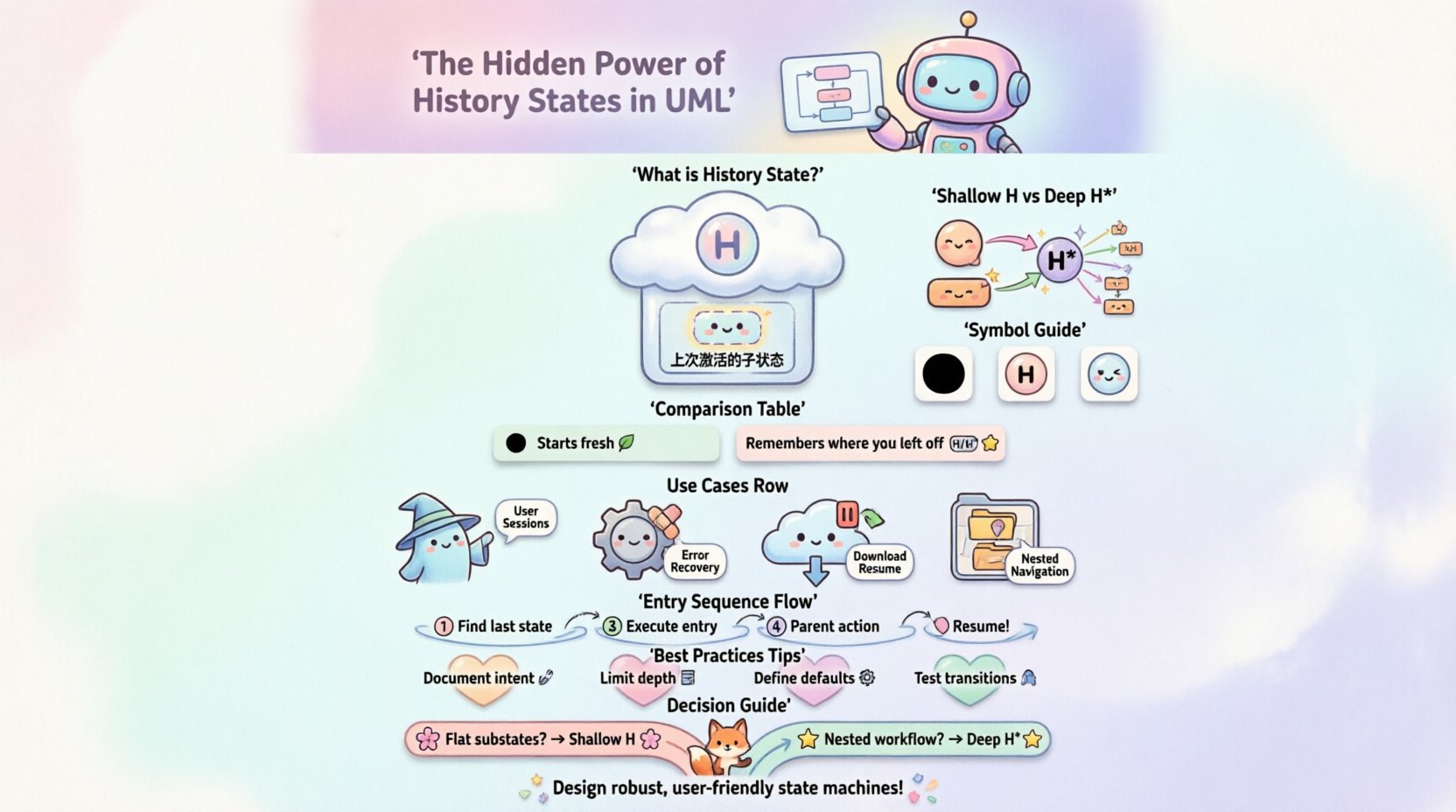

🧩 What Is a History State?
At its core, a history state is a special type of pseudostate within a UML State Machine Diagram. It serves as a marker that remembers the most recent active state within a composite state. When a transition enters a composite state that contains a history state, the system does not default to the initial substate. Instead, it resumes operation from the last known active substate.
This functionality mimics the concept of “memory” in a state machine. Without a history state, every time a system re-enters a parent state, it resets to the beginning. With a history state, the system retains context. This is essential for applications where state continuity is required, such as user sessions, error recovery workflows, or multi-step wizards.
🔍 Distinguishing Shallow and Deep History
There are two distinct variations of the history state, each serving a specific purpose depending on the depth of the state hierarchy. Confusing these two can lead to logic errors in system design.
- Shallow History (H): This remembers the active substate of the immediate parent. If the parent state has substates, the Shallow History directs the flow to the last active substate. It does not look deeper into nested states.
- Deep History (H*): This remembers the active state within the entire hierarchy, including nested substates. If a substate was active within a sub-substate, the Deep History ensures the system returns to that specific nested level.
Visual Syntax in UML
UML provides specific symbols to denote these states graphically. Recognizing these symbols is the first step in identifying where history logic is applied.
- Shallow History Symbol: A capital letter H inside a circle with a small arrow pointing into it.
- Deep History Symbol: A capital letter H followed by an asterisk * (H*), inside a circle with a small arrow pointing into it.
⚙️ Transition Logic and Mechanics
The implementation of history states relies heavily on the logic governing entry and exit actions. When a composite state is entered via a history state, the system must execute the entry action of the last active substate. This is distinct from the entry action of the parent state, which typically fires regardless of the entry point.
The Entry Sequence
When a transition targets a history state within a composite state, the following sequence occurs:
- The system identifies the last active substate recorded in memory.
- The entry action of that specific substate is executed.
- The parent state’s entry action is also executed, unless the transition bypasses it (which depends on the specific implementation logic).
- Control is transferred to the substate, ready to process events.
Conversely, if a transition targets the composite state directly without a history state, the system defaults to the initial pseudostate (the filled circle). This resets the behavior to the beginning of the workflow.
📊 Comparison: History vs. Initial State
To clarify the utility of history states, it is helpful to compare them against the standard initial state. The table below outlines the differences.
| Feature | Initial State (●) | History State (H / H*) |
|---|---|---|
| Function | Starts flow from the beginning | Restores flow to previous point |
| State Memory | No memory of previous states | Remembers last active substate |
| Usage Context | Start of a lifecycle | Resume after interruption or return |
| Reset Behavior | Always resets to default | Preserves context |
| Symbol | Filled Circle | Circle with ‘H’ or ‘H*’ |
🧪 Practical Use Cases
Where do these abstract concepts apply in real-world system design? Here are several scenarios where history states provide tangible value.
1. User Session Persistence
Consider a user interacting with a multi-step configuration wizard. If the user navigates back to the “Configuration” state from a “Review” state, they expect to see their previous inputs. A history state ensures the wizard returns to the specific step they were on, rather than resetting to Step 1. This improves the user experience significantly.
2. Error Recovery Mechanisms
In critical systems, an error might force a transition out of a working state. Once the error is resolved, the system needs to return to its operation. Using a history state allows the system to resume exactly where it left off, rather than restarting the entire process. This minimizes downtime and data loss.
3. Interruptible Processes
Some processes are designed to be interruptible. For example, a “Download” state might be interrupted by a “Pause” event. When the “Resume” event occurs, the system should return to the “Download” state at the point of interruption, not restart the download from zero. The history state captures this context.
4. Multi-Level Navigation
Navigation in complex applications often involves deep hierarchies. A user might drill down from a Dashboard to a Report, then to a Chart, and finally to a Detail view. If they navigate back to the Dashboard and then re-enter the Report module, the history state ensures they land on the specific chart or view they were viewing previously, rather than the generic report list.
⚠️ Common Pitfalls and Challenges
While powerful, history states introduce complexity. Designers must be aware of potential issues.
- Undefined States: What happens if the system enters a composite state for the first time? There is no “last active state.” The design must account for a default initial state in this scenario.
- Nested Complexity: Deep history states can become difficult to trace visually. If a state machine has five levels of nesting, a Deep History state might jump to a substate that is not immediately obvious to the reader.
- State Synchronization: If multiple processes interact with the same state machine, the history context must be synchronized. If one process changes the context without notifying the other, the history state may point to an invalid or inconsistent substate.
- Debugging Difficulty: Tracing the flow of execution becomes harder when history states are involved. Standard logs may not show the entry point if the transition jumps directly to a historical state.
🛠️ Implementation Considerations
When translating these diagrams into code or configuration, specific logic must be embedded. The diagram is a blueprint, but the implementation dictates behavior.
Memory Management
The system must store the identity of the last active state. This is typically done using an internal variable or a context object. When the state machine exits a composite state, it saves the ID of the active substate. Upon entry via history, it retrieves this ID and activates the corresponding substate.
Handling Multiple Transitions
A composite state might have multiple history states, or transitions entering from different sources. The logic must determine which history context to apply. Generally, the history state belongs to the composite state itself, not the transition. Therefore, any transition entering the composite state via the history pseudostate will respect the history of that composite state.
🔄 Deep History vs. Shallow History Decisions
Choosing between Shallow (H) and Deep (H*) is a critical design decision. The choice depends on how the substates are structured and whether the internal hierarchy matters for the resumption of work.
- Use Shallow History When: The substates are flat alternatives, and returning to the parent should allow the system to pick the most recent alternative. You do not care about the specific nested path, just the immediate child.
- Use Deep History When: The state hierarchy represents a specific workflow path. You need to preserve the exact location within the nested structure. This is common in wizards or complex configuration trees.
Example Scenario: A Document Editor
Imagine a document editor with a “View” state containing substates like “Edit Mode” and “Read Mode.” Inside “Edit Mode,” there are substates like “Normal” and “Debug Mode”.
- If you use Shallow History and exit from “Debug Mode” to “Save,” then return to “View,” the system might enter “Edit Mode” but reset to “Normal Mode”.
- If you use Deep History, returning to “View” ensures the system enters “Edit Mode” and then immediately enters “Debug Mode”.
The choice depends on whether the “Debug Mode” is a persistent context or a temporary view.
📐 Best Practices for State Machine Design
To maintain clarity and robustness when using history states, adhere to the following guidelines.
- Document the Intent: Clearly label history states in diagrams. Use comments to explain why a history state is necessary for that specific composite state.
- Limit Depth: Avoid excessively deep nesting. If a state machine requires five levels of history, consider flattening the hierarchy. Deep nesting makes history logic hard to follow.
- Define Defaults: Always define what happens if a history state is accessed before any substate has been active. This prevents undefined behavior errors.
- Test Transitions: Rigorously test the transition from the parent state to the history state. Verify that the correct substate is activated and that entry actions fire correctly.
- Consistent Naming: Use consistent naming conventions for history states to distinguish them from regular states. This helps in code generation and maintenance.
🧠 Theoretical Implications
From a theoretical standpoint, history states introduce a form of temporal logic into the state machine. They break the assumption that state transitions are purely based on the current event and the current state. They introduce the “previous state” as a variable.
This adds a layer of state dependency. The behavior of the system at time t+1 depends not only on the event at t but on the history of the state at t-1. This is crucial for systems that model human interaction or physical processes where continuity is a physical reality.
🚀 Enhancing System Robustness
Incorporating history states into your design philosophy enhances the resilience of the system. It acknowledges that systems are not always linear. Interruptions, errors, and user decisions will cause the flow to deviate. History states provide a mechanism to recover gracefully without losing the context of the operation.
By carefully selecting between Shallow and Deep History, and understanding the mechanics of entry actions, designers can create state machines that feel intuitive and persistent. This attention to detail separates a functional prototype from a production-ready system.
📝 Summary of Key Takeaways
History states are a fundamental component of advanced UML State Machine Diagrams. They allow for context retention within composite states. The distinction between Shallow History (H) and Deep History (H*) determines the granularity of the restoration. Proper implementation requires clear logic for memory storage and default behaviors. Avoiding the pitfalls of complexity and ensuring consistent testing will lead to robust behavioral models.
When designing complex systems, always evaluate if a reset to the initial state is acceptable or if resuming from the last point of activity is required. If the latter is true, the history state is the correct tool for the job. Integrating this concept thoughtfully ensures that your state diagrams accurately reflect the reality of the system’s operation.
